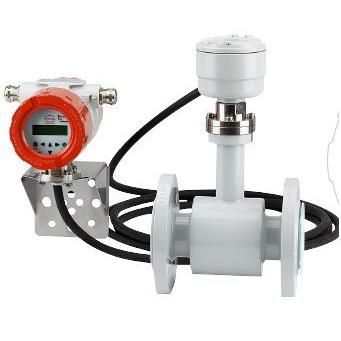

Flujometro Electromagnetico EPS

Código: EPS-A-7050-N-N-0-2-0+UFM2-C-1-1-F-0BH-2

Código Interno: PRO46669

Actualizado: 2022-02-16

EPS Electromagnetic Flow Meter
Brand: Heinrichs (Alemania)
Model: EPS-A-7050-N-N-0-2-0+UFM2-C-1-1-F-0BH-2

Electromagnetic Flowmeter DMH

Código: DMH-1-C1H-H-1-1-A-1-5

Código Interno: PRO37738

Actualizado: 2022-02-16

DMH-1-C1H-H-1-1-A-1-5
Electromagnetic Flowmeter DMH
MODEL: DMH-1-C1H-H-1-1-A-1-5

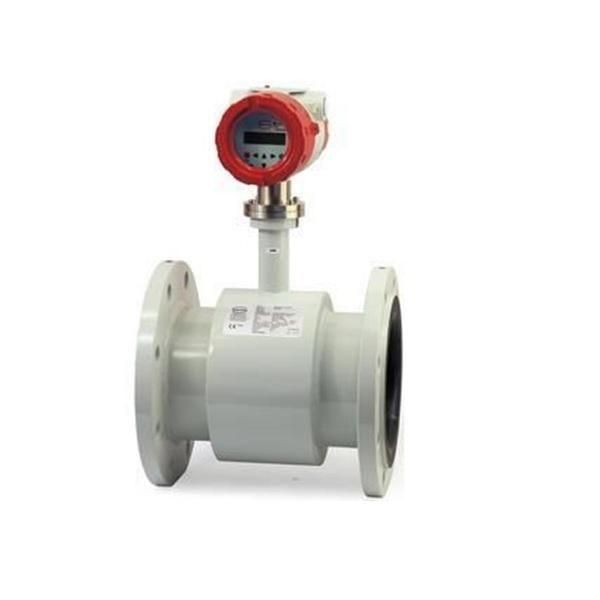

Flujometro Electromagnetico EPS, 6.36 m3/h, 1/2″ Class 150 RF, PTFE, Electrodo Hastelloy C276, HART

Código: EP-P201R-1HH10/UMF2-A12G0BH0

Código Interno: PRO3929

Actualizado: 2022-02-16

Material lining, PTFE (PFA)
Process connection 1/2\" Class 150 RF ASME B16.5-2003
Qmax water 6,36 m³/h
Material electrodes Hastelloy
Earthing electrodes Hastelloy
Power supply 115VAC (+10%, -15%), 50/60 Hz
Output signal, 1: 4 - 20mA with HART®-protocol

Flujometro Electromagnetico EPS, 4300 m3/h, 16″ Class 150 RF, Hard Rubber, Electrodo St. St., HART,

Código: EP-H217R-1SS20/UMF2-C12G0BH3

Código Interno: PRO3930

Actualizado: 2022-02-16

Material - lining hard-rubber
Process connection 16\" Class 150 RF ASME B16.5-2003
Material electrodes stainless steel (1.4571)
Earthing electrodes stainless steel (1.4571)
Power supply 115VAC, 50/60 Hz
Output signal, 1: 4 - 20mA with HART®-protocol
Cable, 15 m

Flujometro Electromagnetico EPS, 1900 m3/h, 10″ Class 150 RF, Hard Rubber, Electrodo St. St., HART,

Código: EP-H214R-1SS20/UMF2-C12G0BH3

Código Interno: PRO3931

Actualizado: 2022-02-16

Material - lining hard-rubber
Process connection 10\" Class 150 RF ASME B16.5-2003
Material electrodes stainless steel (1.4571)
Earthing electrodes stainless steel (1.4571)
Power supply 115VAC (+10%, -15%), 50/60 Hz
Output signal, 1: 4-20mA with HART®-protocol
Cable, 15 m

Flujometro Electromagnetico EPS, 1188 m3/h, DN200, Hard Rubber, Electrodo St. St., HART

Código: EP-H-350B-1-SS-1-0/UMF2-A-1-1-G-0BK

Código Interno: PRO5522

Actualizado: 2022-02-16

MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold-Heinrichs
Material linning, hard-rubber
Process Connection, DN200 PN16 Form B1 DIN EN 1092-1
Material electrodes, Stainless steel
Power supply, 230VAC, 50/60Hz
Output signal, 0(4) - 20mA, with HART-protocol

Flujometro Electromagnetico EP, 8″ Class 150 RF, Hard Rubber, Electrodo St. St.

Código: EP-H-213R-1-SS-1-0+UMF2-A-1-1

Código Interno: PRO11967

Actualizado: 2022-02-16

EP Magnetic Inductive Flowmeter
Brand: Kobold – Heinrichs
Material / Lining: Hard-rubber
Process Connection, 8\" Class 150 RF
Material electrodes, Stainless steel
Mounting: Integrated transmitter IP67 standard
Power supply: 230VAC, 50/60Hz
Output signal, 0(4) - 20mA

Flujometro Electromagnetico EP, 1896 m3/h, 10″ Class 150 RF, 4-20 mA

Código: EP-H-214R-1-SS-1-0(Sensor)+UMF2-A-1-1-F-

Código Interno: PRO11968

Actualizado: 2022-02-16

EP Magnetic Inductive Flowmeter
Brand: Kobold – Heinrichs
Material: Hard-rubber
Process Connection: 10\" Class 150 RF
Material flanges: Steel (painted)
Material electrodes: Stainless steel
Power supply, 230VAC, 50/60Hz
Output signal, 1: 0(4) - 20mA

Flujometro Electromagnetico EP, 288 m3/h, 4″ Class 150 RF, Hard rubber, Electrodo St. St.

Código: EP-H-210R-1-SS-1-0+UMF2-A-1-4

Código Interno: PRO12204

Actualizado: 2022-02-16

EP Magnetic Inductive Flowmeter
Brand: Heinrichs–Kobold
Material – lining, hard-rubber
Process Connection, 4” Class 150 RF
Material electrodes, Stainless steel
Display and control unit, integrated
Power supply, 24 VDC (±15%)
Output signal, 1: 0(4) - 20mA

Flujometro Electromagnetico EP, 8 m3/h, 3/4″ Class 150 RF, PTFE, Electrodo Hastelloy, 4-20 mA

Código: EP-P-202R-2-S-S-2-0+UMF2-C-1-1-G-0BK-2

Código Interno: PRO12569

Actualizado: 2022-02-16

MEDIDOR DE FLUJO DE AGUA SATURADA ELECTROMAGNETICO 1/2” (DN015)
PTFE (PFA) - Standard 3 Hastelloy electrodes (-20ºC-150ºC)
3/4\" Class 150 RF ASME B16.5 2003 (8 m3/h)
Stainless Steel
Power Supply 230VAC, 50/60Hz
Output current output 1: 4 - 20mA with HART
Cable 10m

Flujometro Electromagnetico EP, 28 m3/h, 1 1/4″ Class 150 RF, Hard Rubber, Electrodo St. St., 4-20 m

Código: EP-H-204R-1-SS-1-0+UMF2-A-1-1-F-0BH

Código Interno: PRO13497

Actualizado: 2022-02-16

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 1 1/4\" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC, 50/60Hz
Output signal, 1: 0(4) - 20mA

Flujometro Electromagnetico EP, 62 m3/h, 2″ Class 150 RF, Hard Rubber, Electrodo St. St., 4-20 mA

Código: EP-H-206R-1-SS-1-0+UMF2-A-1-1-F-0BH

Código Interno: PRO13498

Actualizado: 2022-02-16

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 2\" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
