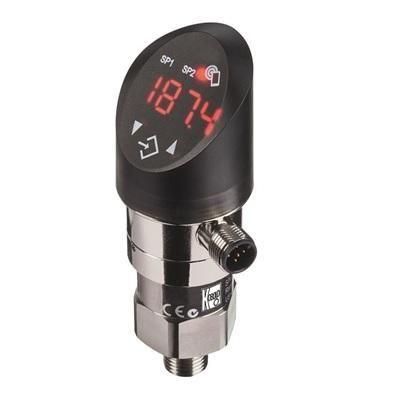

Electronic Pressure Transmitter PSD, 0-25Bar
Código Interno: PRO25149
Actualizado: 2022-02-16

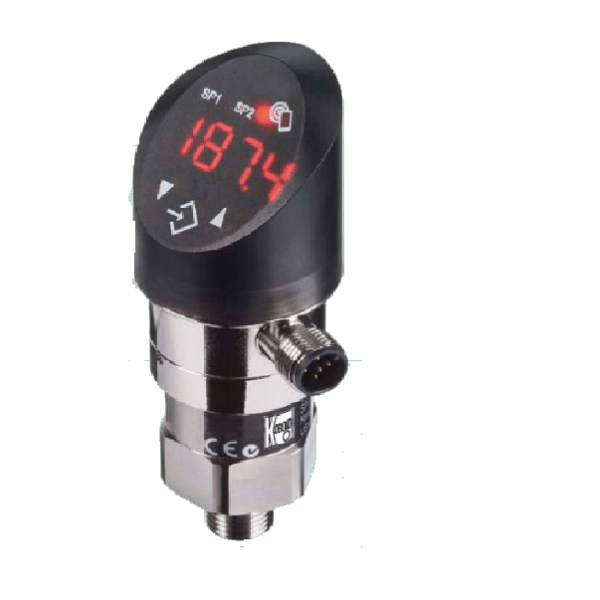

Electronic Pressure TransmitterBrand: Kobold (Alemania)
Model: PSD-43-3-R2-B9-4-0
Accuracy, ± 0,5 % of F.S.
Analogue output, 4-20 mA, 0-10 V switchable
Power supply, 24 (15...30) VDC
Connection (incl. seal ring acc. DIN 3869), G 1/4 male
Measuring Range, 0…25 bar rel
Transmisor electrónico de presión (0…250 bar rel; G 1/4 male)
Código Interno: PRO13629
Actualizado: 2022-02-16
Model: PSD-43-3-R2-C4-4-0Brand: Kobold (Alemania)
Contact output, 2 x PNP, switch point status indication 2 red LED
Analogue output, 4-20 mA, 0-10 V switchable
Seal, FPM
Connection (incl. seal ring acc. DIN 3869), G 1/4 male
Measuring Range, 0...250 bar rel.
Vacuum Switch-SCH-VNM
Código Interno: PRO3925
Actualizado: 2022-02-16
SCH-VNMV-111Vacuum Switch-VNM
SCH-VNMV:
Functional principle, Mechanical Pressure Switch
Mounting postition, arbitrary preferably vertical
Version, Switching difference adjustable
Repeat accuracy, < 1 % of the working range (for pressure ranges > 1 bar)
Protection, IP 54
Max. temperature, 70 °C
Max. pressure, according to switching range
Material Probe Housing, 1.4104
Material Balg/Membran, 1.4571
Pressure connection, external thread G ½ A (pressure gauge connection) acc. to DIN 16 288
and internal thread G ¼ to ISO 228 part 1
111: Switching range, -1,0...+0,1 bar
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/p3gb_sch.pdf
Interruptor de presión para sobrepresión (8-40 bar)
Código Interno: PRO14389
Actualizado: 2022-02-16
Model: SCH-EX-DNM-40Brand: Kobold (Alemania)
Repeat accuracy: < 1 % of the working range (for pressure ranges > 1 bar)
Protection: IP 65
Max. Temperature: 60 °C
Material Probe Housing: st. steal 1.4104
Material Balg/Membran: st. steal 1.4105
[40]: Switching range: 8-40 bar
Electronic Pressure Transmitter 0…400 bar rel.
Código Interno: PRO24394
Actualizado: 2022-02-16
Electronic Pressure TransmitterBrand: Kobold (Alemania)
Model: PSD-43-3-R2-C5-4-0+MZB-712 / 7172
[PSD-43]:
Measuring principal, Thin film on st.steel (1.4542)
Accuracy, ± 0,5 % of F.S
Accessories(PSD)
Model: MZB-712 / 7172
Connection adapter,
1/2 NPT male, st. steel 1.4571
Compact Pressure Switch ¼» NPT Male (Std.)
Código Interno: PRO37905
Actualizado: 2022-02-16
Mechanical Pressure Switch (MALDONADO)TAG: PSL-035
KPH300-
Wetted Materials: Zinc-plated Steel and NBR
Switch Housing: Thermoplastic
Operating Temperature: -4...176 °F
Setpoint Repeatability: ±2% of Full Scale Range
Setpoint Hysteresis: 10-30% of the Adjusted Value
1: Single SPDT Contact
2: ¼\" NPT Male (Std.)
7/115: 7...115 PSIG
C: Plug Connector (DIN 43 650) with ½\" NPT Conduit
Datasheet:
http://koboldusa.com/sites/default/files/product_files/KPH300_datasheet.pdf
Pressure Switch for overpressure
Código Interno: PRO38102
Actualizado: 2022-02-16
PRESSURE SWITCH FOR OVERPRESSUREModel: SCH-DCMV-10-972
Brand: KOBOLD
SCH-DCMV
Functional principle: Mechanical Pressure Switch
Mounting postition: arbitrary preferably verical
Version: setting hysteresis
Repeat accuracy: < 1 % of the working range (for pressure ranges > 1 bar)
Protection: IP 54
Max. Temperature: 70 °C
Max. Pressure: according to switching range
Material Probe Housing: Cu/brass or VA
Material Balg/Membran: NBR, brass or VA
Switching range: 1...10 bar
Options: 2 Switching points preset or def. switching difference
Data sheet: http://www.kobold.com/uploads/files/p3gb_sch.pdf
Pressure Switch with Hall Sensor PDL-0
Código Interno: PRO38117
Actualizado: 2022-02-16
Pressure Switch with Hall Sensor PDL-0Modelo: PDL-01-35-N2-B085
Marca: Kobold
Functional principle: Electronic Pressure Transmitter
Repeatability: < 1% of F.S.
Protection: IP 65
Max. temperature: 80 °C
Material Probe Housing: Brass/Plastic
Output: 1 N/O contact + 1 N/C contact
Connection: 1/4 NPT male, brass
Switch point: 1,6…16 bar
Datasheet:
http://www.kobold.com/uploads/files/p3gb_pdl.pdf
