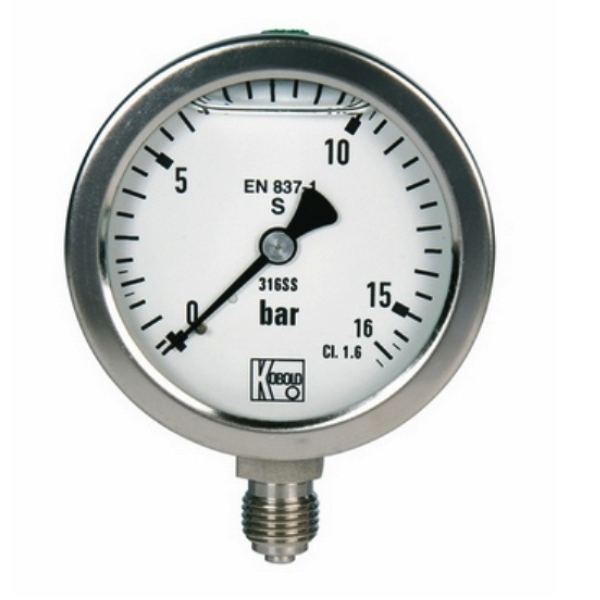

All Stainless Steel- Pressure Gauges with Bourdon Tube for exceptional safety MAN-NH7, 0-10Bar
Código Interno: PRO39931
Actualizado: 2022-02-17
All Stainless Steel- Pressure Gauges with Bourdon Tube for exceptional safetyModel : MAN-NH7-SS-B7
Brand: Kobold (Alemania)
Connection at bottom
Accuracy class: 1.0
Diameter: 150 mm
Housing , filled*
Process Connection: G 1/2 male
Indication range, 0...10 bar

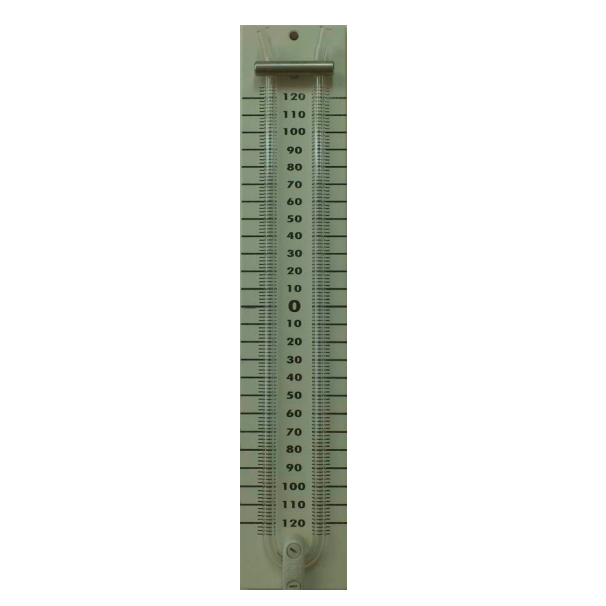

U-tube Pressure Gauges PUM, 0-1500mm
Código Interno: PRO39996
Actualizado: 2022-02-17
U-tube Pressure GaugesBrand: Kobold ( Alemania)
Model: PUM-150
Accuracy, ± 2 mm water column
Material U-tube, Borosilicate
Material frame, aluminium alloy
Material hoöding elements, Polystyrene
Connection, hose coupling D= 7 mm
Measuring range, 0-1500 mm water column

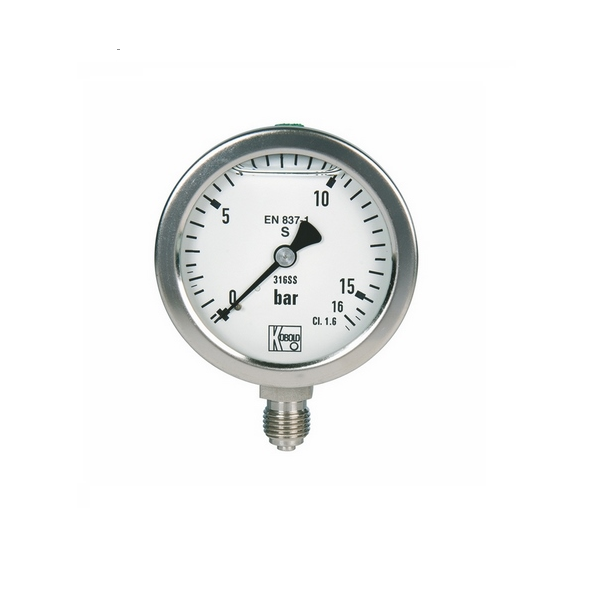

All Stainless Steel- Pressure Gauges with Bourdon Tube, MAN-RD25, 0-10Bar/PSI
Código Interno: PRO41731
Actualizado: 2022-02-17
All Stainless Steel- Pressure Gauges with Bourdon TubeBrand: Kobold (Alemania)
Model: MAN-RD25-B7-U2
Accuracy class 1,6
Diameter 63 mm
Housing St.St.
Connection St.St.
Process Connection G 1/4 male
Indication range, 0...10 bar
Twofold scale (define units); PSI and BAR

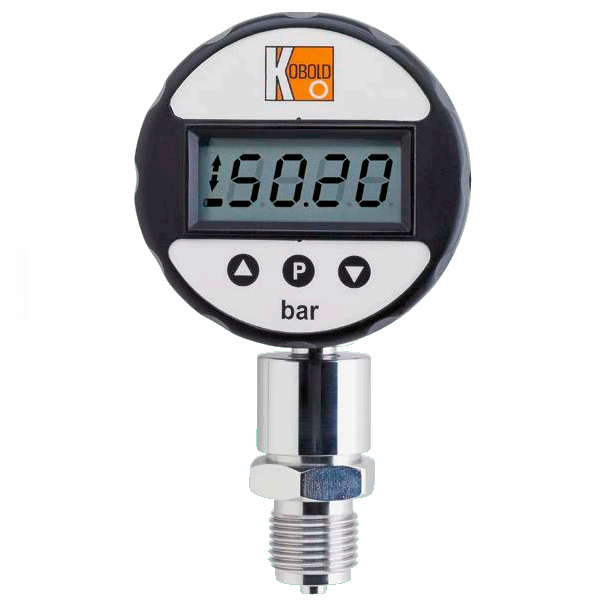

Digital manometer MAN-LD3, 0-1Bar, ZUB
Código Interno: PRO41389
Actualizado: 2022-02-17
Digital manometerBrand: Kobold (Alemania)
Model: MAN-LD3-SS-B2-S
Output 4-20 mA
Accuracy class 0,5
Power supply 24 VDC
Medium temperature -30..+85 °C
Connection, 1/2 NPT
Measuring range, 0...1 bar
Electrical connection, plug connector M12
Include: ZUB-KAB-12K502

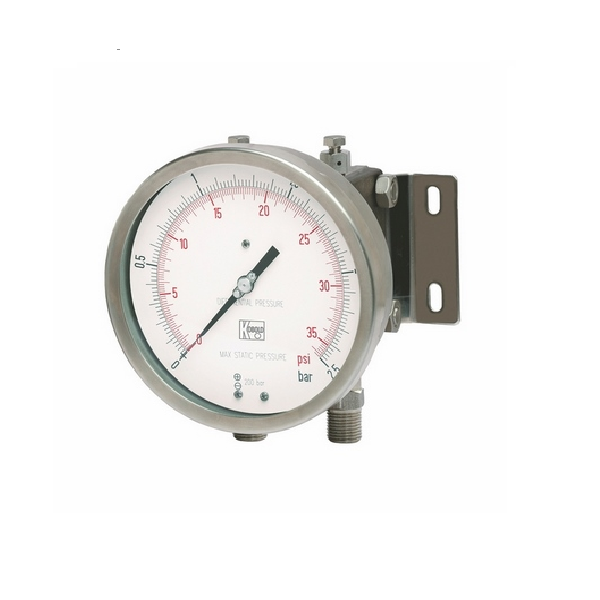

Differential pressure gauges with diaphragm MAN-UFC. 0-30PSI
Código Interno: PRO40568
Actualizado: 2022-02-17
Differential pressure gauges with diaphragm for stat. pressure up to 200 barBrand: Kobold
Model: MAN-UFC-R-EY-000_(0-30 PSI)
Accuracy class 1,6
Diameter 100 mm
Housing St.St.
Max. medium temp. 150 °C
Connection, 1/4\" NPT, bottom
Indication range, (Press. Diff: 0-30 PSI)
Bourdon Tube Pressure Gauge MAN-R, 30″Hg-15PSI
Código Interno: PRO38206
Actualizado: 2022-02-17
Bourdon Tube Pressure GaugeBrand: Kobold (USA)
MAN-R:
F: Housing Size, Dial Size: 4” (100 mm)
2: Housing Material / Fill Option: Stainless Steel
M: Connection Material / Position; Brass Connection: ½” NPT Bottom Connection
H325: Pressure Range, 30” Hg to 15 PSIG
All Stainless Steel- Pressure Gauges with Bourdon Tube MAN-RD75, -1-+5Bar, inH2O/PSI, NPT
Código Interno: PRO40643
Actualizado: 2022-02-17
All Stainless Steel- Pressure Gauges with Bourdon TubeBrand: Kobold (Alemania)
Model: MAN-RD75-A3-TN-U2
Accuracy class 1,6
Process Connection, G 1/4 male
Indication range, -1...+5 bar
Options, Connection in NPT (st.st.)
Options, Twofold scale (define units), inH2O / PSI
