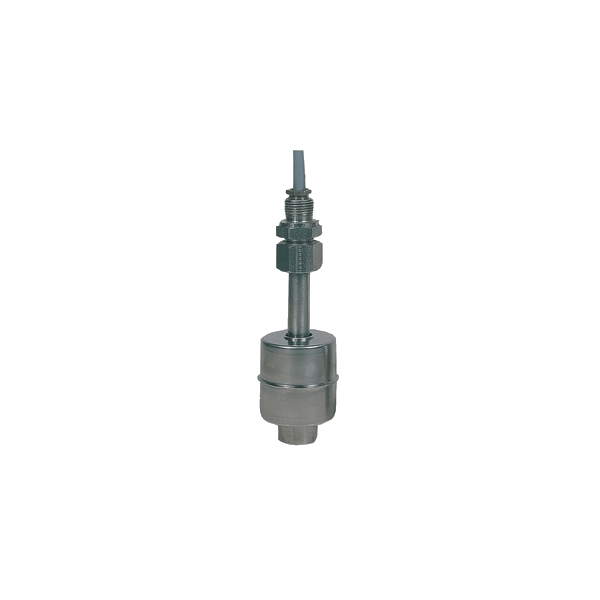

Standard Switch

Código Interno: PRO41575

Standard Switch
Brand: Kobold (Alemania)
Model: M10-E-LN9-W-W-X-X-0-F(1895 mm)
[M10-E]:
Guiding tube, st.st. 1.4404
Float material st.st. 1.4404
max. temperature (PVC-cable) 70 °C
max. temperature (silicone-cable) 150 °C
max. pressure 30 bar
min. density 0,6 kg/dm3
longer guiding tube:
L1= 1685 mm
L2= 1845 mm
L0= 1895 mm
[LN9]: Connection thread, 2\» NPT
Body material: st.steel 1.4404
Housing material: aluminium
Electrical connection: M20 x 1.5
[W]: contact: 1st SPDT
[W]: additional contacts, 2nd SPDT
[X]: additional contacts, w/o 3rd contact
[X]: Additional contacts, w/o 4th contact
[0]: electr. connection, w/o cable / with housing
[F]: ATEX, ATEX II 1/2GD Ex d
