EPS Electromagnetic Flow Meter, Max. measuring range, 632 m³/h, Installation length, 300 mm.

Código Interno: PRO46386

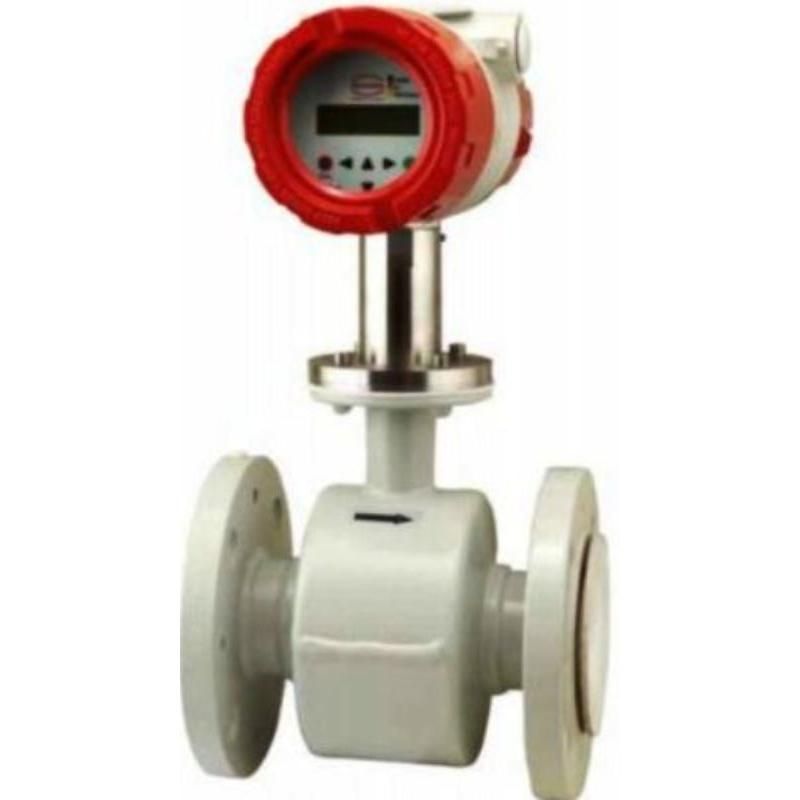

EPS Electromagnetic Flow Meter
Brand: Heinrich (Alemania)
Model: EPS-H-212R-1-S-S-1-0+UMF2-A-1-1-G-0BH
[EPS-H]: Sensor
Material Lining, Hard Rubber (Ebonit)
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C
[212R]: Process connection, 6\» Class 150 RF ASME B16.5-2003
Max. measuring range, 632  m³/h, Installation length, 300 mm.
[1]: Material Process connection, Flange steel painted
[S]: Material electrodes, st.st. 1.4571 (316 -TI)
[S]: Earthing electrode, st.st. 1.4571 (316 TI)
[1]: Transmitter mounting, Integrated Transmitter
Protection class, sensor IP 67
[0]: Certificates, w/o

UMF2-A-1-1-G-0BH
[UMF2]: Transmitter
[A]: Mounting,
Integrated transmitter IP 67 standard
Thread-electrical ½\» NPT (f)
[1]: Display and control unit, integrated
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz
[G]: Output Signal:
current output: 1x 0/4-20 mA c/w HART protocoll
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BH]: Design, Heinrichs
