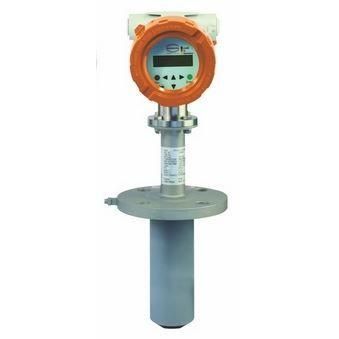

Electro Magnetic Flowmeter,Temperature, Tmax. = 100°C

Código Interno: PRO46211

Magnetic Inductive Flow Meter
Brand: Kobold – Heinrichs
Model: PIT-U317B662HL400-0-K+UMF2-D11F0BK2
Process data:
Media Wasser
Density 1.000 kg/m³
Process temperature 20 °C
Flow direction left to right
Customer range value 20 mA 10,5 m³/s
Working pressure p e 4 bar
Outside diameter 2,032.00 mm
Wall thickness 101.60 mm
Inside diameter of pipe 1,828.80 mm
Depth of immersion 274 mm

Armature data:
Model 316Ti/316L/PTFE-design for RD
suitable for pipe – see process data (PN16)
design with removal device
Process connection DN40 PN40 B1 DIN EN 1092-1
Length of sensor (T) 662
Material electrodes Hastelloy

Additional supply Special: 0,5 – 5 m/s
designed for flow-velocity 0,5 m/s – 5 m/s
Transmitter mounting remote transmitter; IP67
Protection class of sensor: IP 67
junction box via M20 x 1,5
Design Kobold
Option: Retracting Device pressure spindle set 1G
Version for separate converter consisting of:
Welded socket DN 65 PN 16,
Ball valve, mounting piece DN65 PN16 / DN40 PN40
and pressure spindle set
Permitted temperature range -40 – 100 °C
Nominal pressure of armature 16 bar

Transmitter:
Transmitter UMF2(b)
Mounting remote transm. IP67 M20x1,5
with pipe / wall mounting bracket
cables included
(standard length 2,5m; special length is indicated separately)
Ambient temperature range:
-20°Celsius to + 60°Celsius (-4°F to 140°F)
Display and control unit integr. display-/control panel
language english
Power supply 230V AC (+10%, -15%), 50/60 Hz
Output current output w/o HART®
current output 1: (0) 4 – 20mA
pulse output: passive Um=24VDC
status output: passive Um=24VDC
Design UMF2b KOBOLD Design
Connecting cable 10m IP67
breakout cable, at IP68 additional junction box
