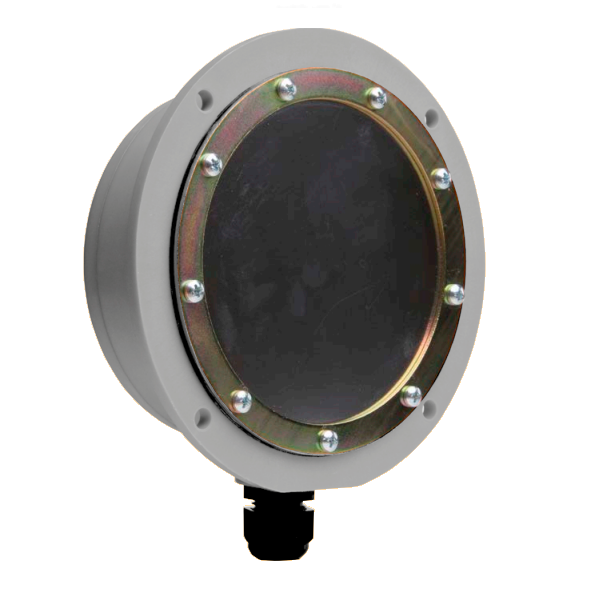

Membrane Level Monitor, 60…200 g, 70 °C,
Código Interno: PRO39693
Membrane Level MonitorModel: NMF-D-VE
Brand: Kobold (Alemania)
[NMF-D]:
Housing material, GRP
Sensitivity, 60...200 g
max. temperature, 70 °C
max. pressure, pressureless (up to 1 bar over pressure secured)
Contact, SPDT
Application, double membrane
[VE]: membrane/ fix. ring, FPM / st. steel
Membrane Level Switch for Bulk Media, Temperature Range: -4 … 140F
Código Interno: PRO659
Membrane Level Switch for Bulk MediaModel: NMF-EVN
Brand: Kobold (USA)
[NMF-EVN]:
Materials Membrane: FKM
Retaining Ring:Galvanized Steel
Housing: Glass Reinforced Plastic GRP
Weight: 480 g
Sensitivity: Adjustable between 60 g and 200 g
Protection:
IP 40 (Screwed Fitting Bottom)
IP 53 (Screwed Fitting Top)
Contact Loading: Max. 4 A at 250 VAC
Temperature Range: -4 ... 140 °F
Pressure: Vented, Max. 14.5 PSI
Cable Entry: M20 x 1.5 Fitting
Mounting: Vertical
?Membrane Level Monitor (200…500 g)
Código Interno: PRO37630
Membrane Level MonitorModel: NMF-B-EA
Brand: Kobold (Alemania)
[NMF-B]:
Housing material, cast Aluminium
Sensitivity, EA= 200…500 g
max. temperature, EA= 200 °C
max. pressure pressureless (up to 1 bar over pressure secured)
Contact SPDT
Application, high temperature
[EA]: membrane/ fix. ring, st. steel / cast Alum.
Membrane Level Monitor, SPDT, Max. Temperature: 80 C
Código Interno: PRO41547
Membrane Level MonitorModel: NMF-B-VA
Brand: Kobold (Alemania)
[NMF-B]:
Housing material: cast Aluminium
Sensitivity: 100...200 g
Max. Temperature: 150 °C
Max. Pressure: Pressure less (up to 1 bar over pressure secured)
Contact: SPDT
Application: high temperature
[VA]: Membrane / Fix. Ring: FPM / cast Alum.
?Membrane Level Monitor, 100…200 g , 80 °C,
Código Interno: PRO41546
Membrane Level MonitorModel: NMF-B-NA
Brand: Kobold
[NMF-B]:
Housing material: cast Aluminium
Sensitivity: 100...200 g
Max. Temperature: 80 °C
Max. Pressure: Pressure less (up to 1 bar over pressure secured)
Contact: SPDT
Application: high temperature
[NA]: Membrane / Fix. Ring: Nitirl / cast Alum.
Membrane Level Monitor, 60…200 g, 60 °C, SPDT
Código Interno: PRO37514
Membrane Level Monitor
Model: NMF-E-VN
Brand: Kobold
[NMF-E]:
Housing material: GRP
Sensitivity: 60...200 g
Max. Temperature: 60 °C
Max. Pressure: Pressure less (up to 1 bar over pressure secured)
Contact: SPDT
Application: Thin wall
[VN]: Membrane / Fix. Ring: FPM / st., zinc plated
